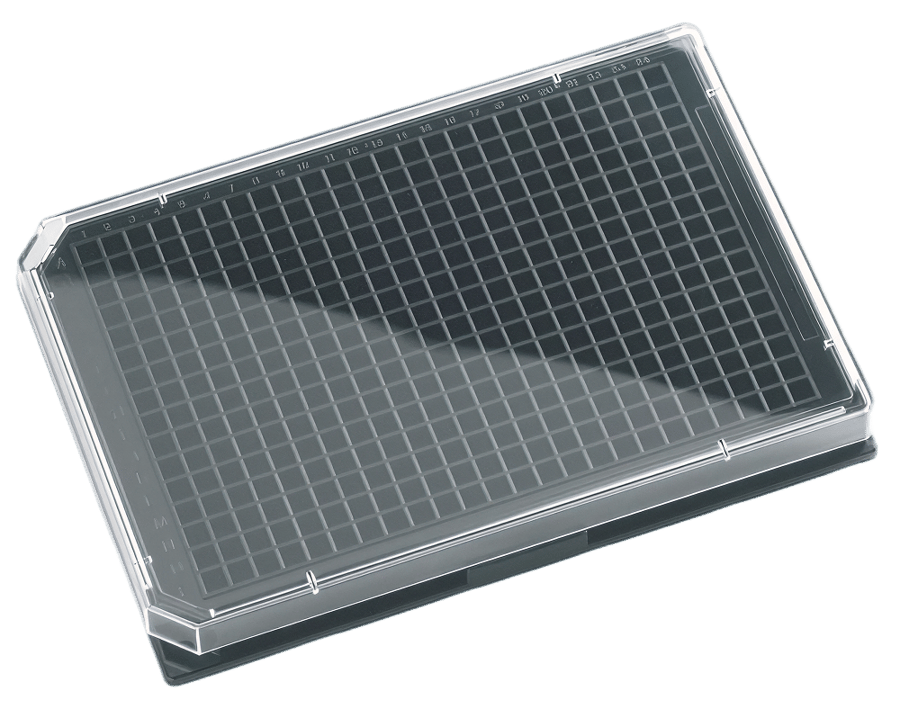

Glass Bottom Plates

Available sterile and non-sterile and in 24, 96, and 384 well formats, these plates are manufactured for whole-plate CCD imaging and laser detection applications. The plates consist of a polystyrene upper and a clear borosilicate glass sheet fixed to the base with a proprietary adhesive. The plates have consistent base flatness providing improved light transmission while maintaining a flat optical plane for growing cells.

• 175µm glass thickness
• ±15µm flatness across base
• 335 nm UV optical cut-off
• Biocompatible adhesive
• Resistant to alcohol, DMSO, and PBS
• All plates supplied with lid
